Finished single vision 1.49 bifocal flat top

Home>Products

1.49 Flat-Top

Announcer: Danyang Lens Optics Technology Co.,Ltd. Release time: 2017-2-11 21:06:17 Hits: 385 Close

Specification for CR39 Base curve & CT/ET.
Product : Finished Index 1.49 Bifocal Flat Top
Material Property
Index : 1.49
Material : Allyl Di-glycol Carbonate (ADC)
Density : 1.31
Abbe Value: 58
Lens Technical Data
Add Power: +1.00~+3.00 Steps in 0.25 steps
Finished Lens Technical Data
Lens Diameter : 70/28mm

Nominal Basecurve	upper power range	Dia (mm)	Actual Convex Diopter	Concave Diopter	Convex Curve Radius (mm)	Concave Curve Radius (mm	CT (mm)	ET (mm)


4.00	-2.00	70	4.00	6.25	130.75	83.680	1.7
	-1.75			6.00		87.170
	-1.50			5.75		90.950
	-1.25			5.50		95.950
	-1.00			5.25		99.620	1.9
	-0.75			5.00		104.600
	-0.50			4.75		110.100
	-0.25			4.50		116.220
5.00	0.00		4.90	4.93	106.76	106.180		1.9
	0.25			4.64		112.620
	0.50			4.39		119.190
	0.75			4.05		128.980		1.6
	1.00			3.77		138.650
	1.25			3.51		148.820		1.1
	1.50			3.23		161.910
	1.75			2.92		179.130
	2.00			2.63		198.520
	2.25			2.37		220.230
	2.50			2.10		248.850
	2.75			1.83		286.060
	3.00			1.57		333.630

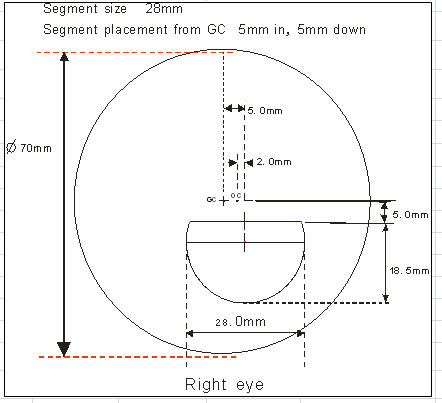

Lens Layout
